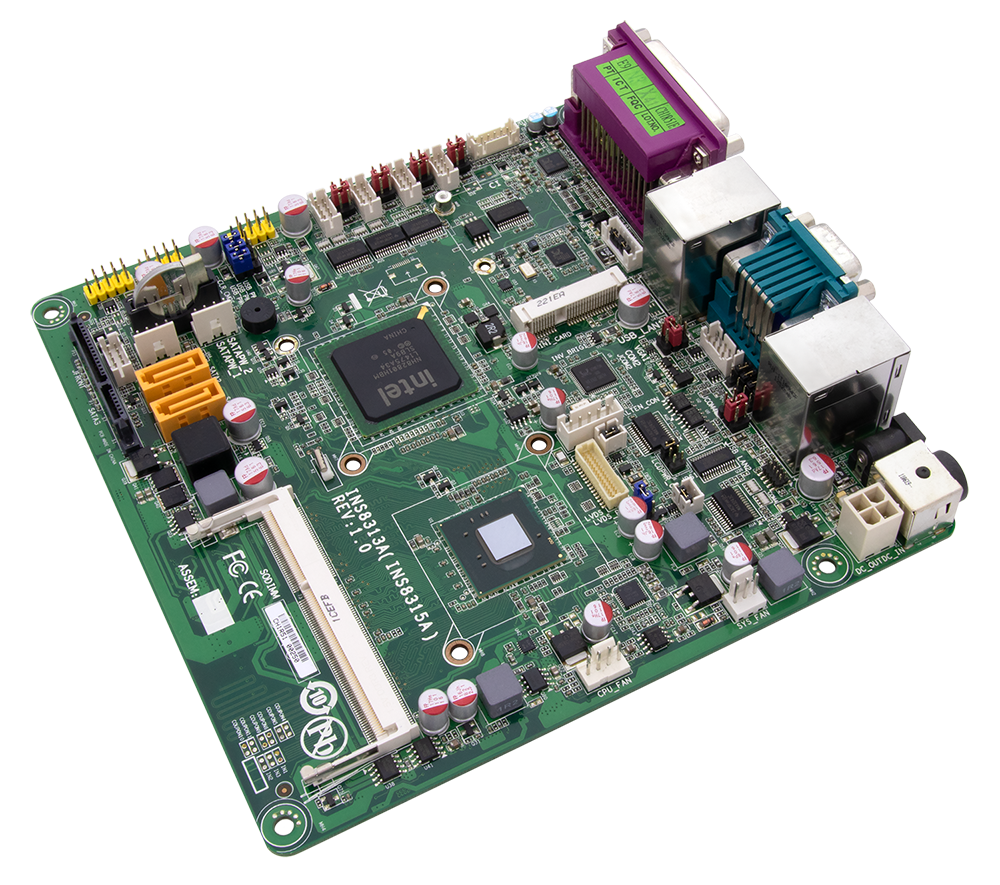

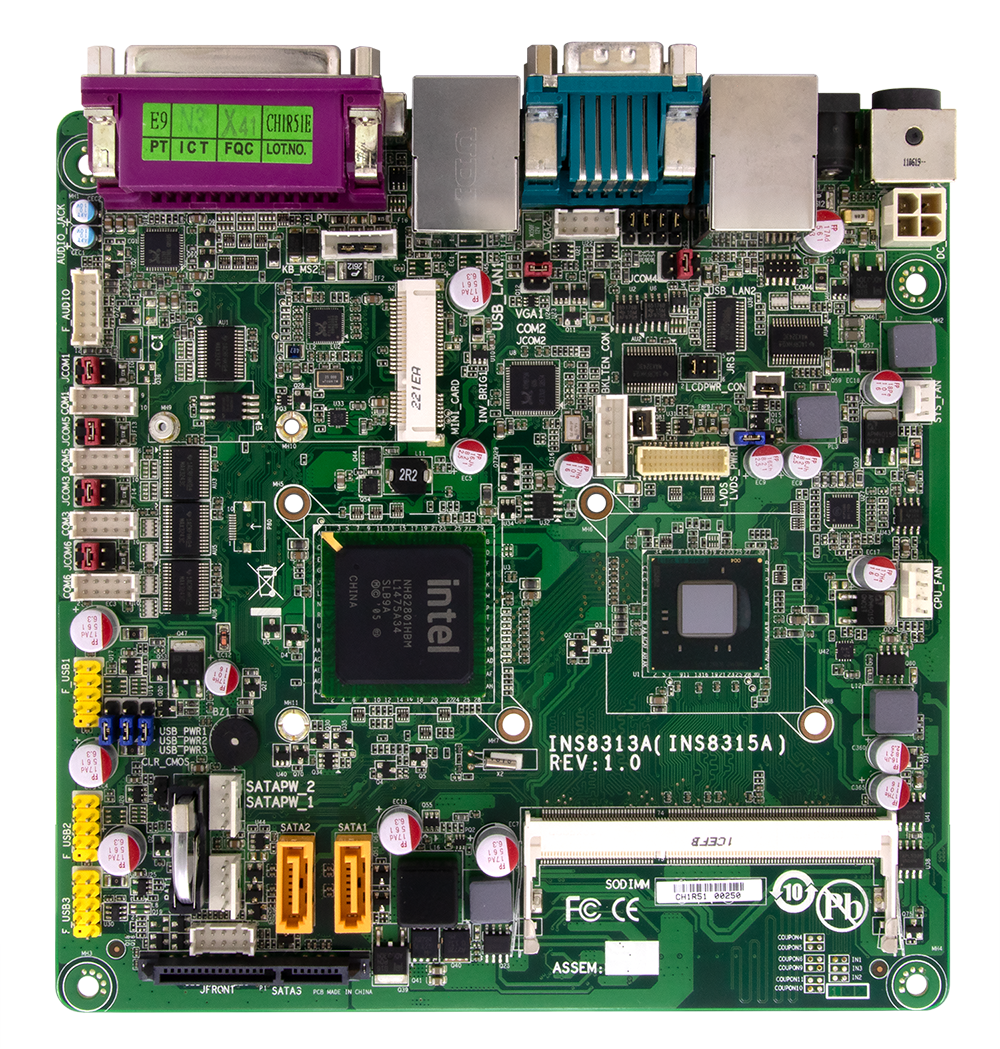

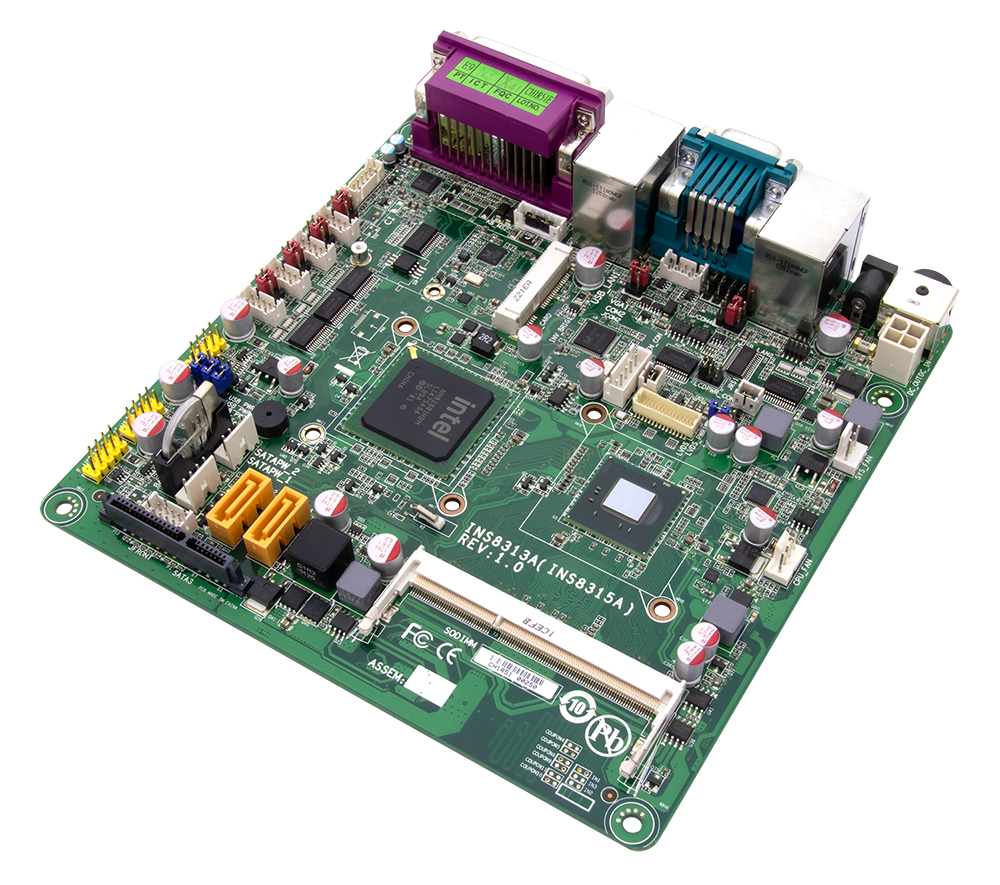

INS8313A

INS8313A_Intel®Atom D525, 12V DC Input, 0°C to 60°C_01
INS8313A_Intel®Atom D525, 12V DC Input, 0°C to 60°C_02
INS8313A_Intel®Atom D525, 12V DC Input, 0°C to 60°C_03

Intel® Pineview D525 Mini-ITX Industrial MB, 12V DC-in

  • Supports Intel® Pineview D525 CPU onboard
  • VGA/LVDS dual display
  • 1 x Mini PCIe slot
  • Dual GbE LAN
  • 9 x USB ports
  • 6 x COM ports with 5V/12V selection
  • 1 x RJ11 supports cash drawer
  • 12V DC-in & 12V DC-out
  • Technical Profile
  • Specifications
Introduction

Support dual core Intel® Atom™ processor D525 with the Intel® ICH 8M PCH chipset. The Intel® GMA 3150 graphics engine is built into the chipset to provide fast graphics performance, high visual quality, and flexible display options without the need for a separate graphics card.it is ideal for applications such as Kiosk, POS, POI, lottery machine, gaming, and industrial automation.



Operating Temp.


0°C to 60°C


System


CPU Type

Intel® Atom™ D525 1.8 GHz

Chipset

Intel® ICH8M

Memory Type

1 x 204-pin SO-DIMM DDR3 800/1066 MHz up to 4 GB

BIOS

AMI® BIOS

Super I/O

ITE ITE87821

2nd Super I/O

Fintek F81214R

Watchdog

1-255 sec. or 1-255 min. software programmable,

can generate system reset

Expansion Slot


Mini PCIe

1

Display


Chipset

Integrated Intel® GMA3150 GFX Render core

Onboard VGA

Yes (Max. resolution 2048 x 1536)

LVDS

Supports single channel 18-bit LVDS

(Max. resolution 1366 x 768)

Dual Independent Display Capability

VGA + LVDS

Audio


Codec

Realtek ALC269 High Definition Audio Code

Ethernet


Chipset

2 x RTL 8111E GbE LAN

WOL

Yes

Boot from LAN

Yes for PXE

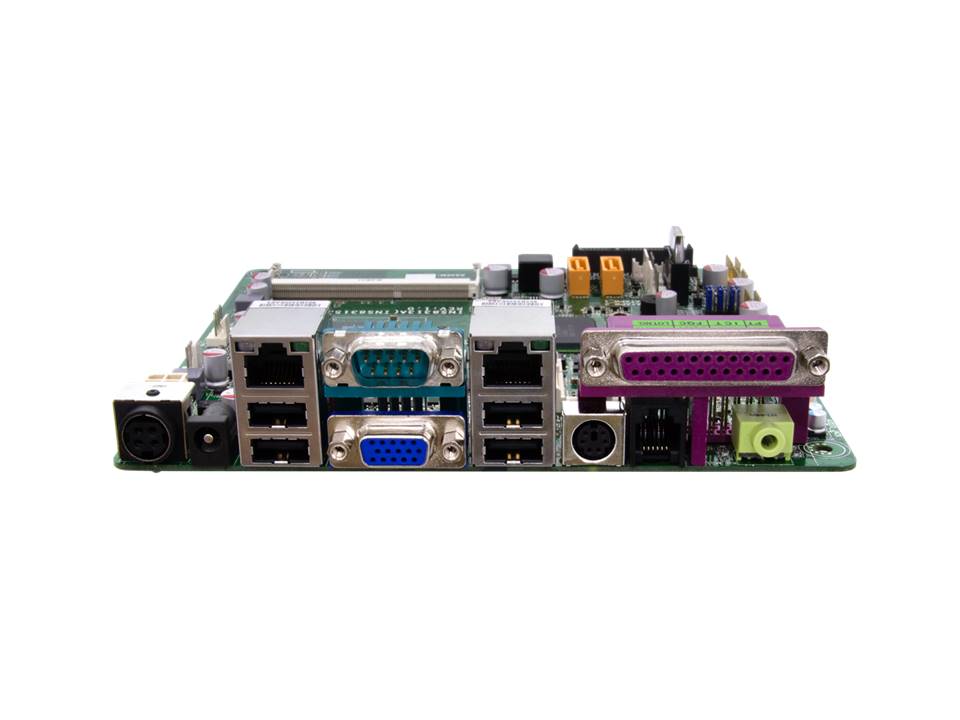

Rear I/O


VGA

1

Audio

1 x Speaker-out

Ethernet

2 x RJ45

COM

1 x RS232/422/485 with 5V/12V selectable

USB

4 x USB2.0

PS/2

1

RJ11

1 supports cash drawer

LPT

1

I/O Interface


SATA

3 x SATAII (3 Gb/s)

  • 2 x 7-pin SATA II
  • 1 x 7-pin + 15-pin SATAII

USB

5 x USB2.0 ports by pin header

COM

5 x COM ports

  • COM2 port supports RS232/422/485 (0/5/12V)
  • COM3-COM6 ports support RS232 (0/5/12V)
  • COM4 port supports VFD mode

LVDS

20-pin connector

Fan

CPU/System fan connector

Mechanical and Environment


Form Factor

Mini-ITX Industrial MB

Power Type

12V DC-in, AT/ATX mode support

Dimension

170 x 170 mm (6.7" x 6.7" )

Operating Temp.

0°C to 60°C

Storage Temp.

-40°C to 85°C

Relative Humidity

10% to 90%, non-condensing
